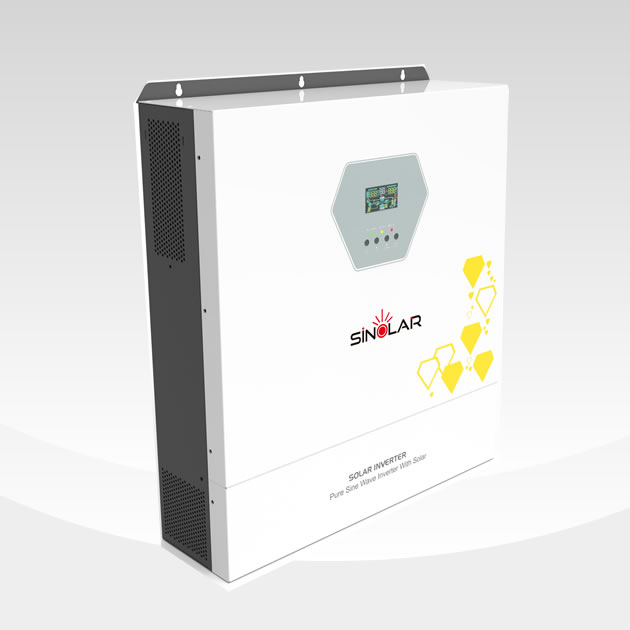

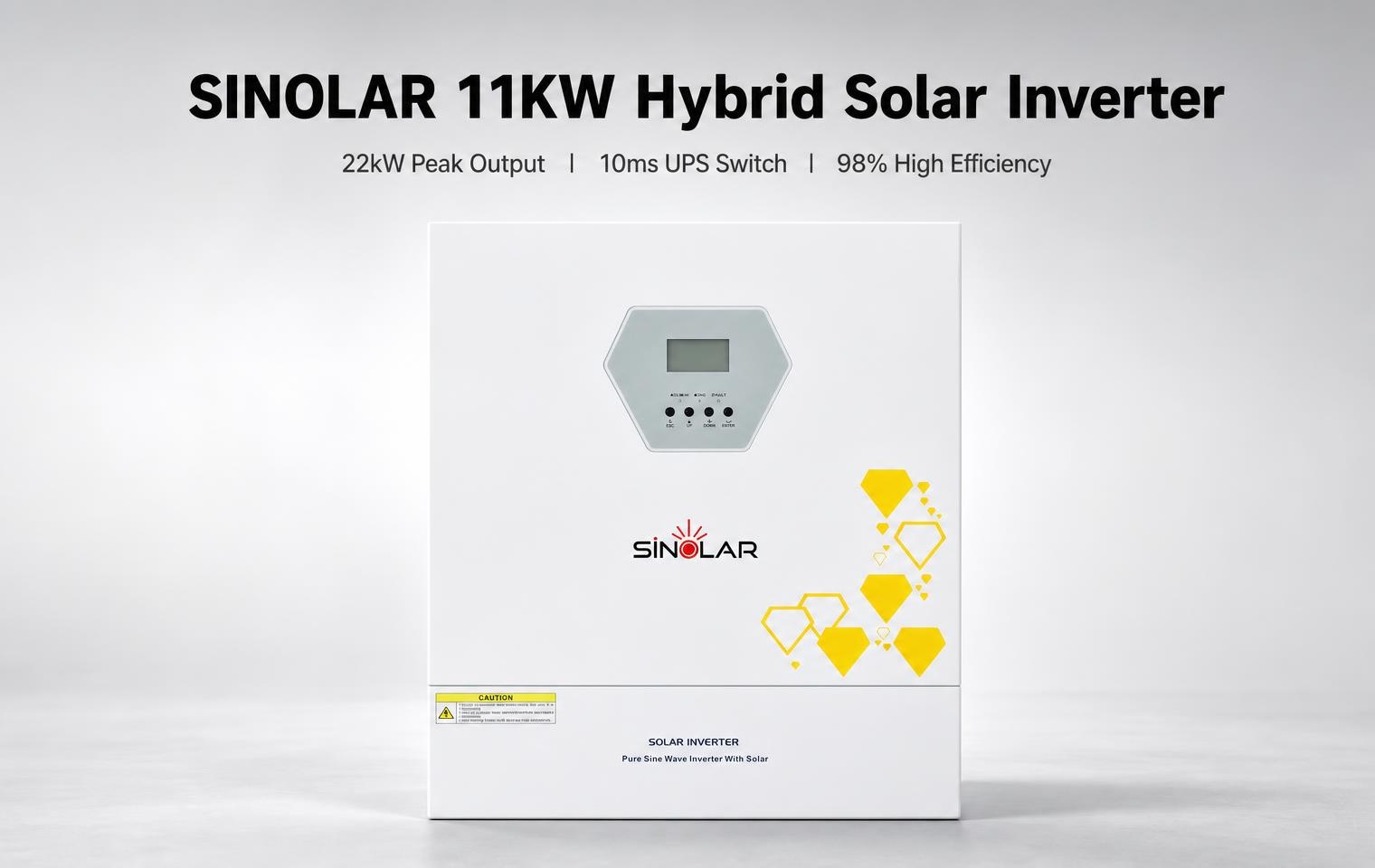

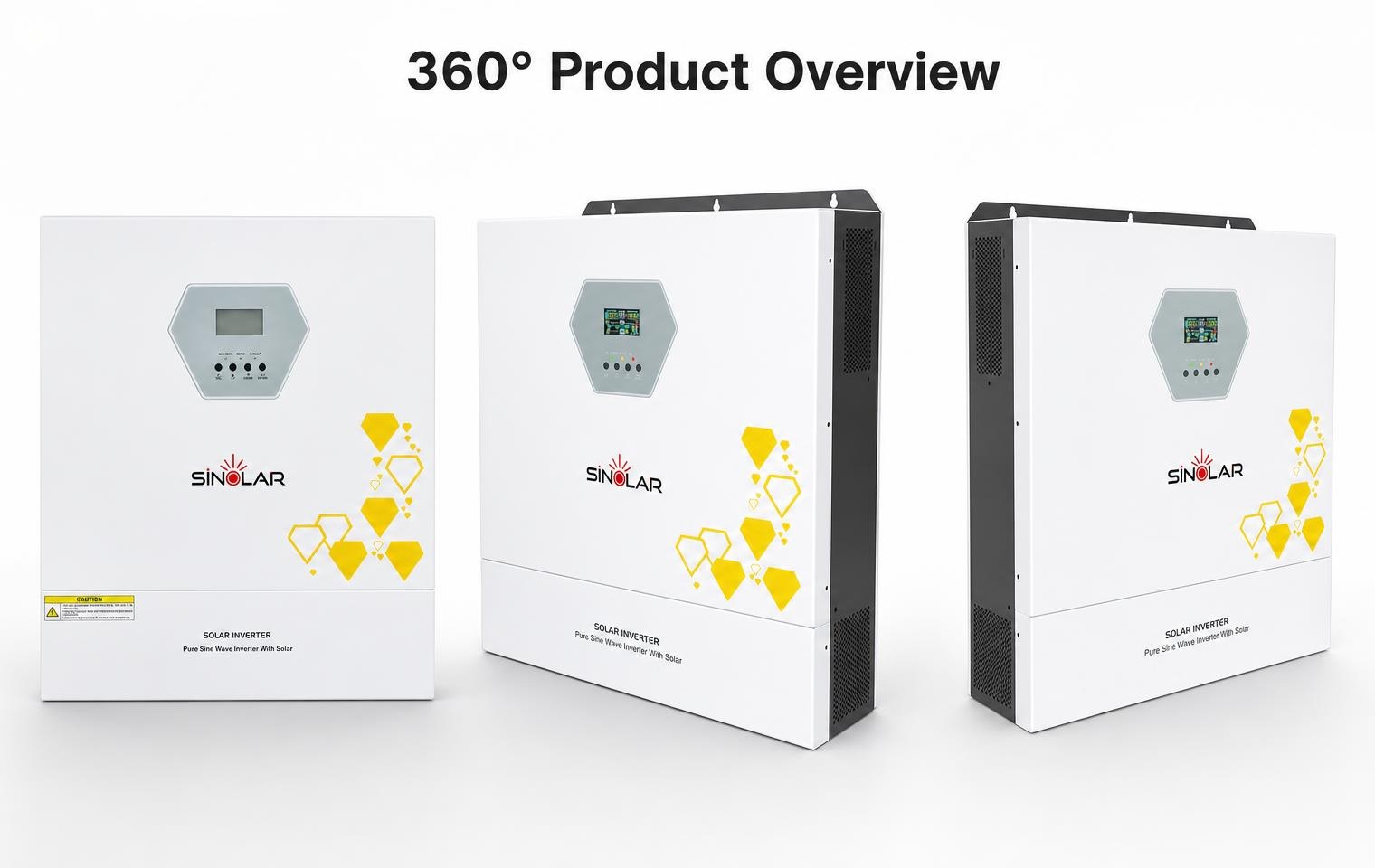

Sinolar SOLAR 11kva 48v Hybrid Inverter With Inbuilt 15000W Mppt Controller

{{ product.price_format }}
{{ product.origin_price_format }}
Quantity:
Brand: Sinolar
SKU:{{ product.sku }}
Model: {{ product.model }}

{{ variable.name }}

{{ value.name }}
Product Details

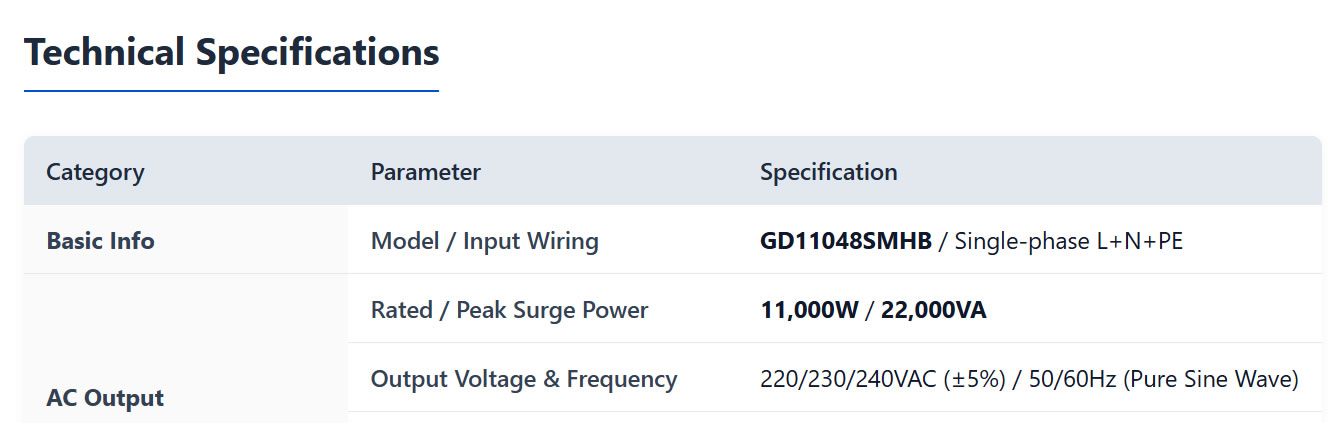

Model GD11048SMHB
Input voltage Input Formation L+N+PE
AC Input 220/230/240VAC
Input Voltage Range 90-280VAC±3V(Normal Mode)170-280VAC±3V(UPS Mode)
Frequency 50/60Hz(Adaptive)
Output Rated Power 11000W
Output Voltage 220/230/240VAC±5%
Output Frequency 50/60Hz±0.1%
Output Wave Pure Sine Wave

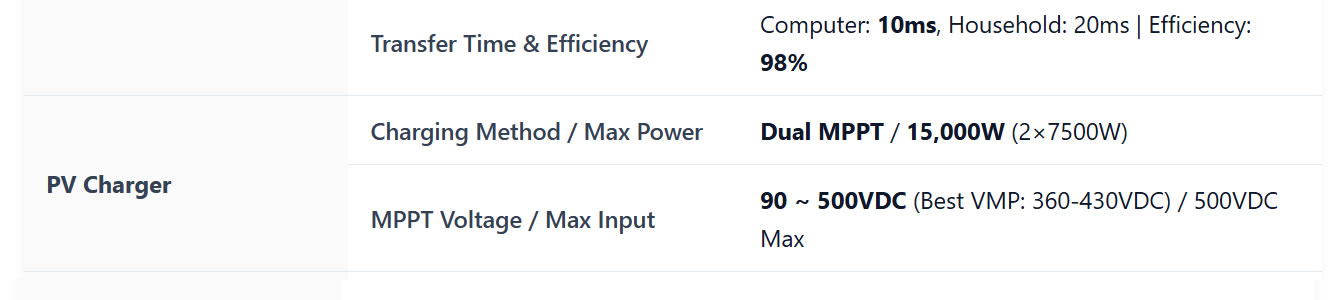

Transfer Time(Adjustable) 10ms for Computer Equipment,20ms for Household Equipment
Peak Power 22000W
Overload Ability Battery Mode: 21s@105%-150% Load
11s@150%-200% Load
400ms@>200% Load
Grid connected
Operation		 Output Voltage 220/230/240VAC
Grid Voltage Range 195-253VA
Grid Frequency Range 49-51±1Hz/59-61±1Hz
Output Current 47.8A
Power Factor Range >0.99
Conversion Efficiency(DC/AC)  98%

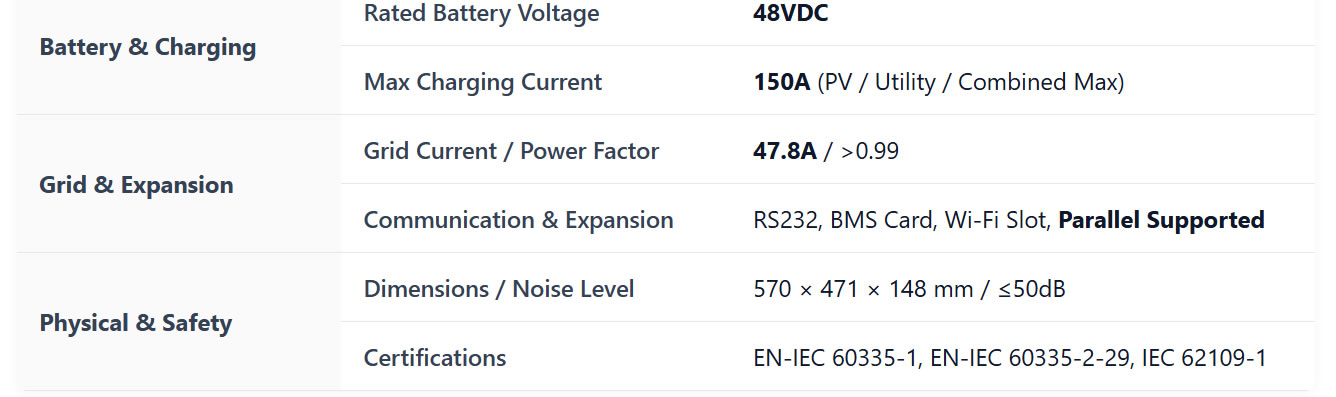

Battery Rated Voltage 48VDC
Constant Charging Voltage (Adjustable) 56.4VDC
Float Charging Voltage (Adjustable) 54VDC
Charger PV Charging Method MPPT*2
Max PV Input 2x7500W
MPPT Tracking Range 90-500VDC
Best VMP Working Range 360-430VDC
MAX PV Input Voltage 500VDC
MAX PV Input Current 27A/27A
MAX PV Charge Current 150A
MAX AC Charge Current 150A
MAX Charge Current 150A

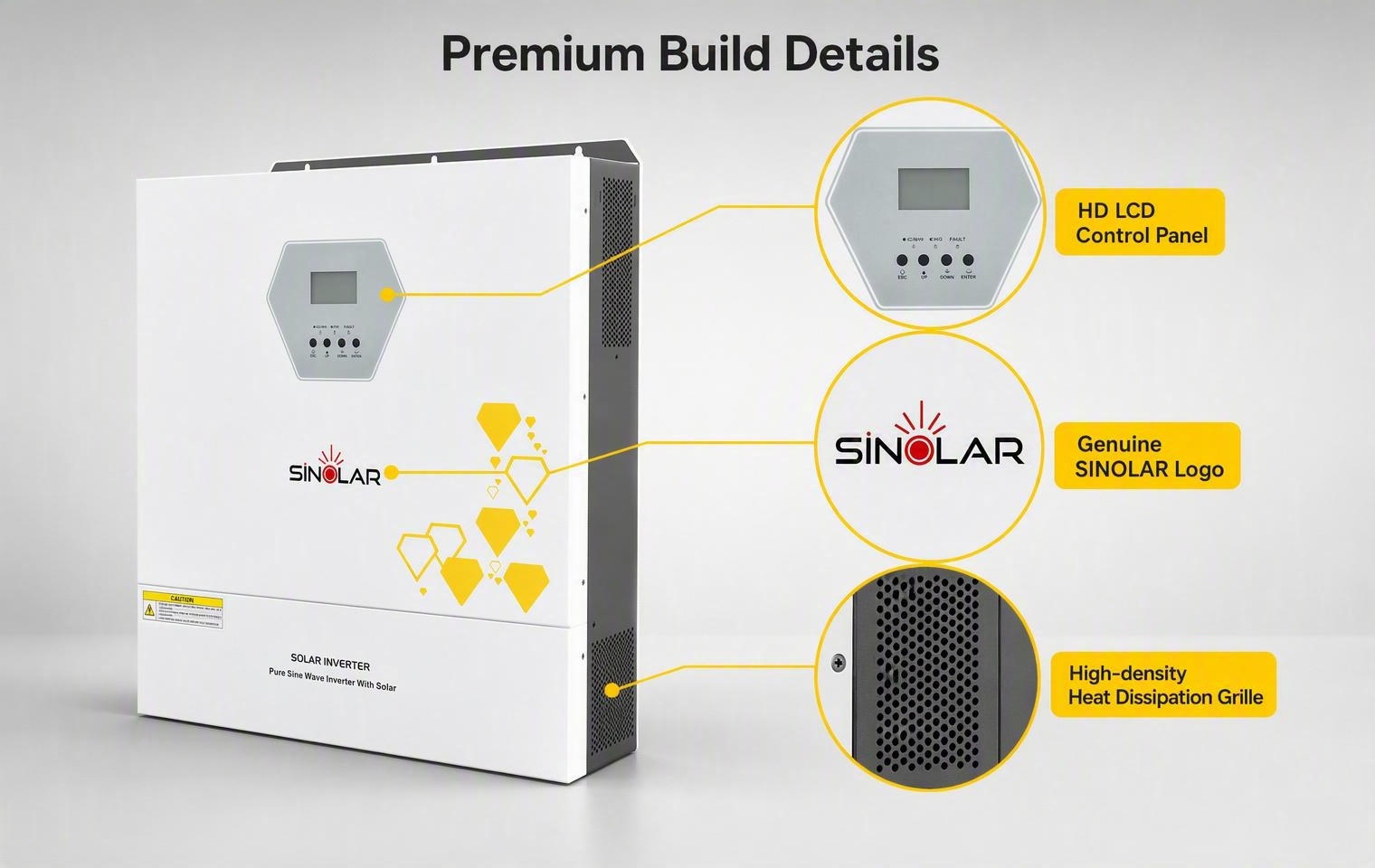

Display LCD Can display operating mode/load/output
Interface RS232 5PIN/Pitch2.54mm,Baud Rate 2400
Expansion Slot Communication Interface 2x5PIN/Pitch2.54mm,Lithium Battery BMS Communication Card,WIFI 2x5PIN/Pitch2.54mm
Parallel Interface Support Parallel
Ambient Temperature Operating Temperature -10°C~50°C
Storage Temperature -15°C~60°C
Ork Altitude No more than 1000m, if 1000m,Rate power will lower, MAX 4000m, Refer to IEC62040
Operating Environment Humidity 20%-95% Non Condensing
Noise ≤50db

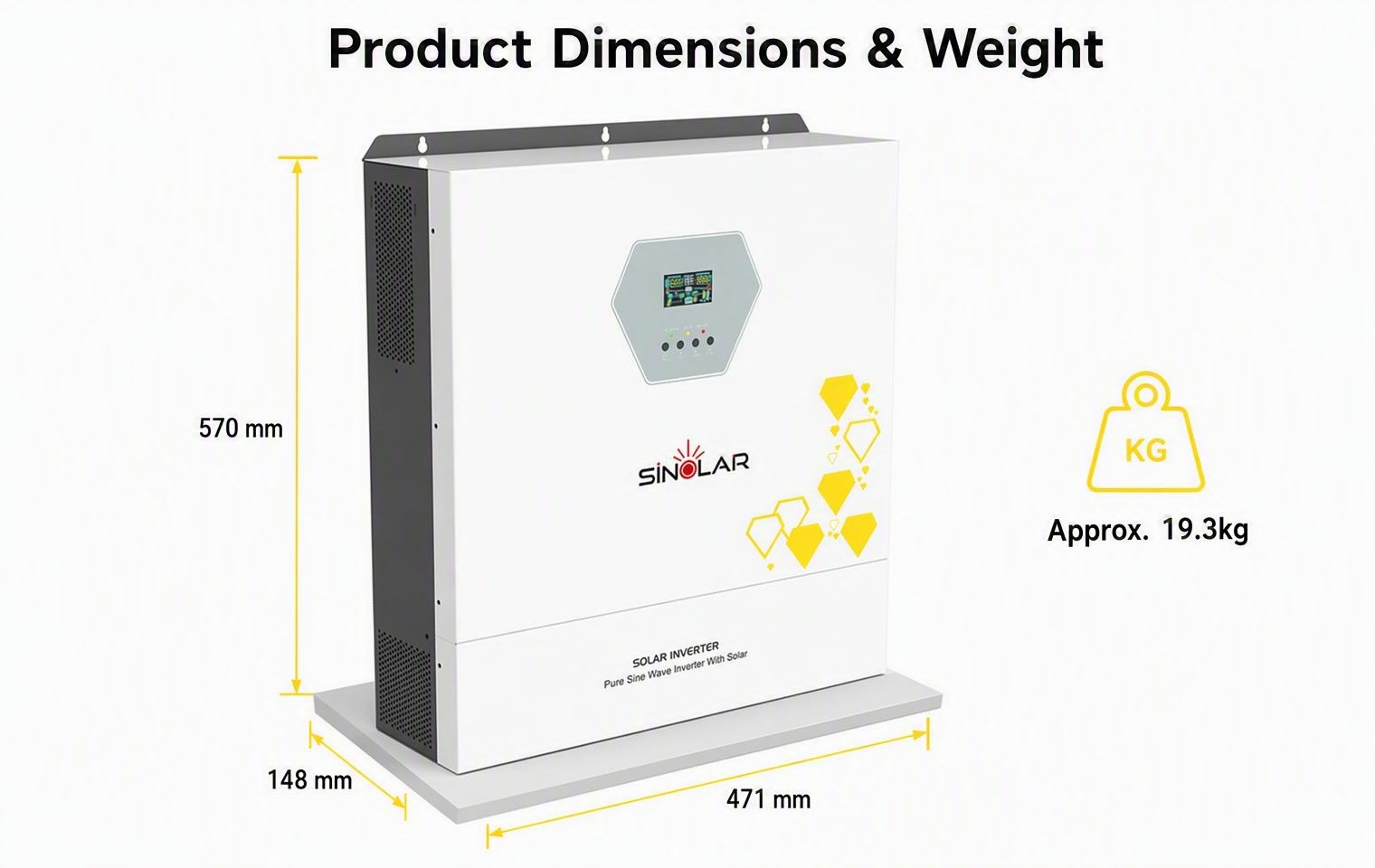

Dimension L"W"H(mm) 570*471*148mm
Standards and Certifications EN-IEC 60335-1,EN-IEC 60335-2-29,IEC 62109-1
